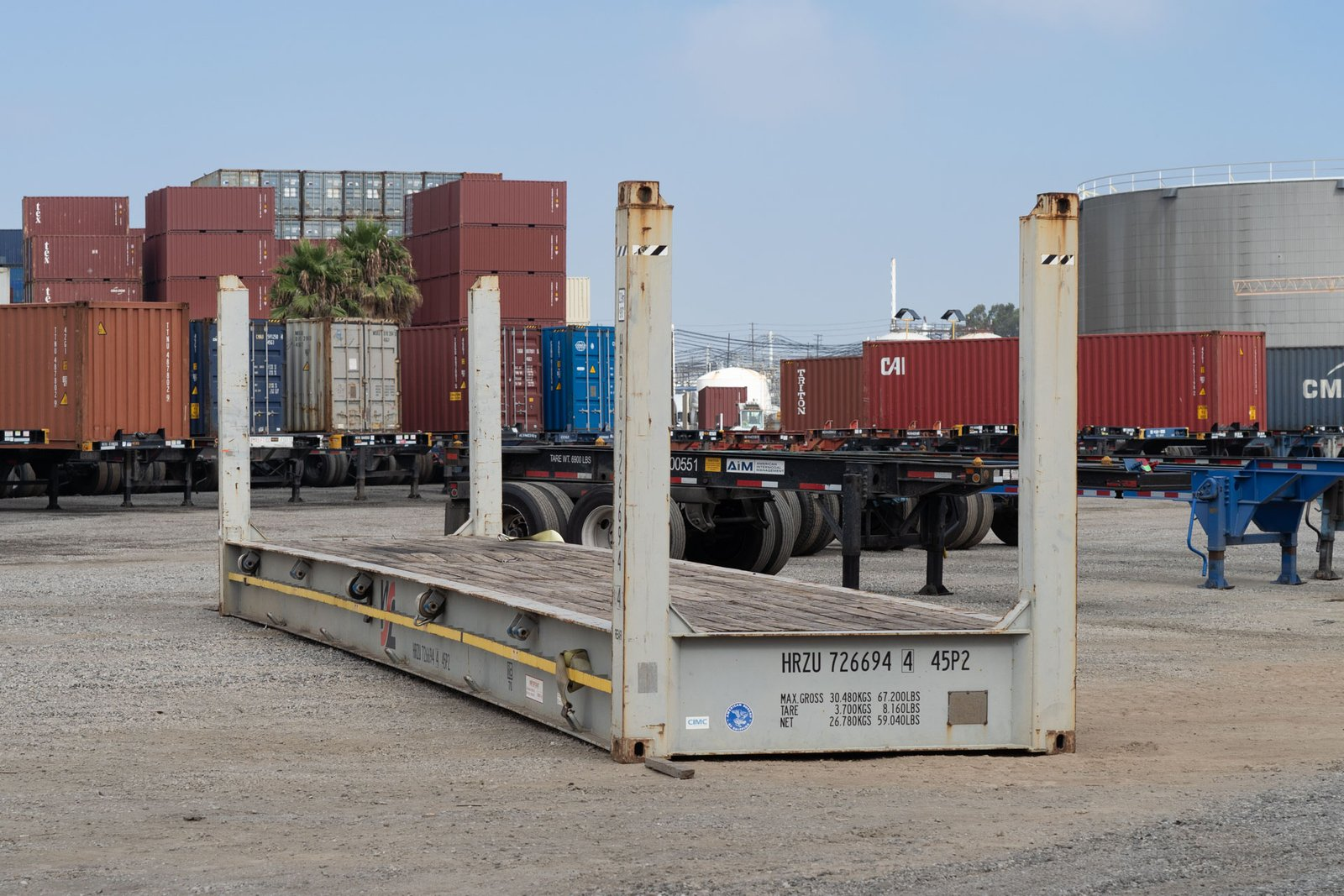

20ft Cargo-Worthy Flat Rack Shipping Container
Product Description
This 20-foot flat rack shipping container is designed for transporting cargo that exceeds the dimensions or loading requirements of standard enclosed shipping containers. Its open-sided and open-top configuration provides the flexibility needed for oversized machinery, vehicles, timber, pipes, construction materials, and other project cargo.
The unit consists of a heavy-duty steel base frame with collapsible end walls at each end. When the end walls are folded down, multiple flat racks can be stacked efficiently for return transport, helping optimize space and reduce repositioning requirements.
Integrated lashing rings are positioned throughout the base frame and end walls to help secure cargo during transit. Standard ISO corner castings allow the unit to be lifted, stacked, secured, and handled aboard vessels, chassis, rail cars, and other compatible intermodal equipment.
This unit is classified as cargo-worthy, indicating that it meets the structural requirements for intermodal freight transport. The base frame features steel cross members and a flush-mounted hardwood floor suitable for wheeled and tracked equipment. The collapsible end walls are constructed from COR-TEN steel and lock securely into their upright position during transport.
Key Features
- Cargo-Worthy Classification: Suitable for intermodal freight transport.
- Open-Top and Open-Side Design: Provides flexible access for oversized and out-of-gauge cargo.
- Collapsible End Walls: Fold down for efficient stacking and return transportation.
- Heavy-Duty Steel Base Frame: Designed to support heavy machinery and project cargo.
- Integrated Lashing Rings: Help secure cargo during sea, road, and rail transport.
- ISO Corner Castings: Enable lifting, stacking, and securement using standard container-handling equipment.
- Hardwood Flooring: Suitable for wheeled and tracked equipment.
- COR-TEN Steel Construction: Provides strength and durability for demanding transport applications.
Technical Specifications
| Specification | Detail |
|---|---|
| External Length | 20 ft (6.06 m) |
| External Width | 8 ft (2.44 m) |
| End Wall Height (Erected) | 6 ft 8 in (2.03 m) |
| Base Frame Height | 2 ft 2 in (0.66 m) |
| Internal Length | 19 ft 5 in (5.92 m) |
| Internal Width | 7 ft 8 in (2.34 m) |
| Maximum Payload | Approx. 31,000 kg (68,300 lbs) |
| Tare Weight | Approx. 2,800 kg (6,200 lbs) |
| Lashing Rings | 16+ across base and end walls |
| Material | COR-TEN Steel |
| Floor Material | Hardwood |
| End Wall Configuration | Collapsible and locking |
| Corner Castings | ISO Standard |
| Classification | Cargo-Worthy |
Compatibility / Intended Use
This flat rack container is intended for intermodal freight transport and ground-level applications, including:
- Oversized machinery and equipment shipping
- Construction material transport
- Timber and pipe shipments
- Vehicle and heavy equipment transport
- Project cargo and industrial applications
- Storage of non-containerizable goods
Package Includes
- 1 x 20-foot Cargo-Worthy Flat Rack Shipping Container
- 2 x Collapsible End Walls with Locking Mechanisms
