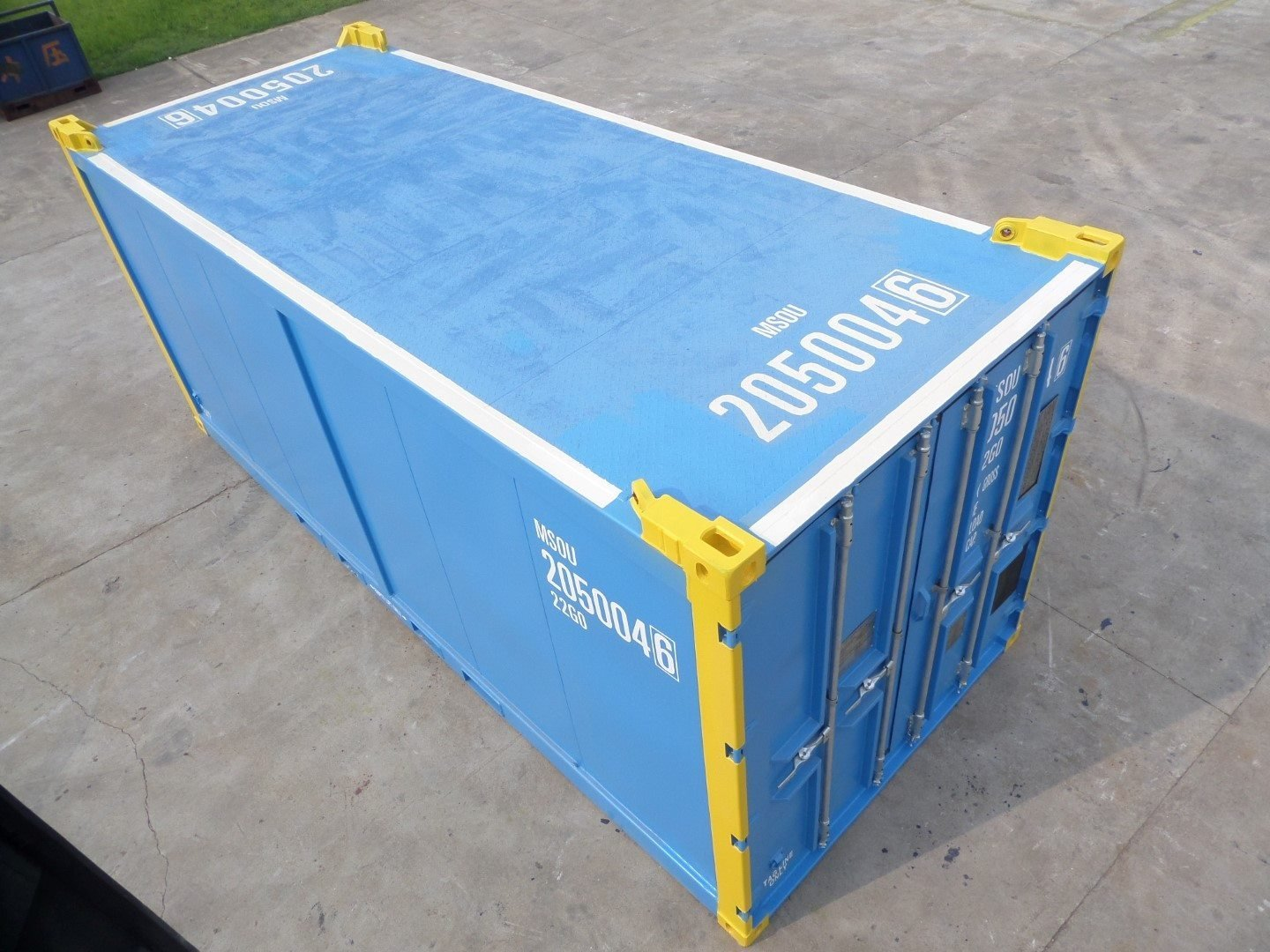

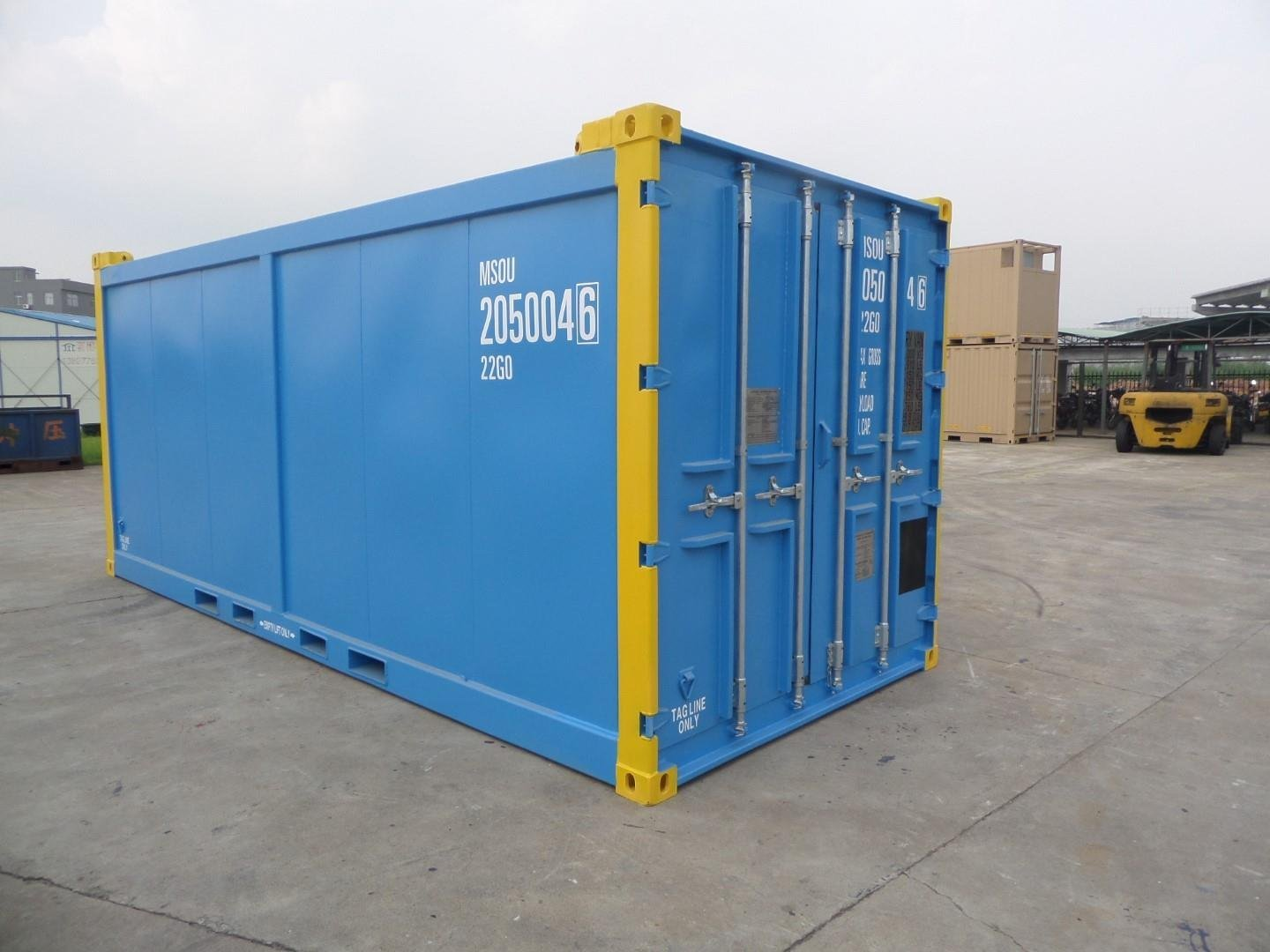

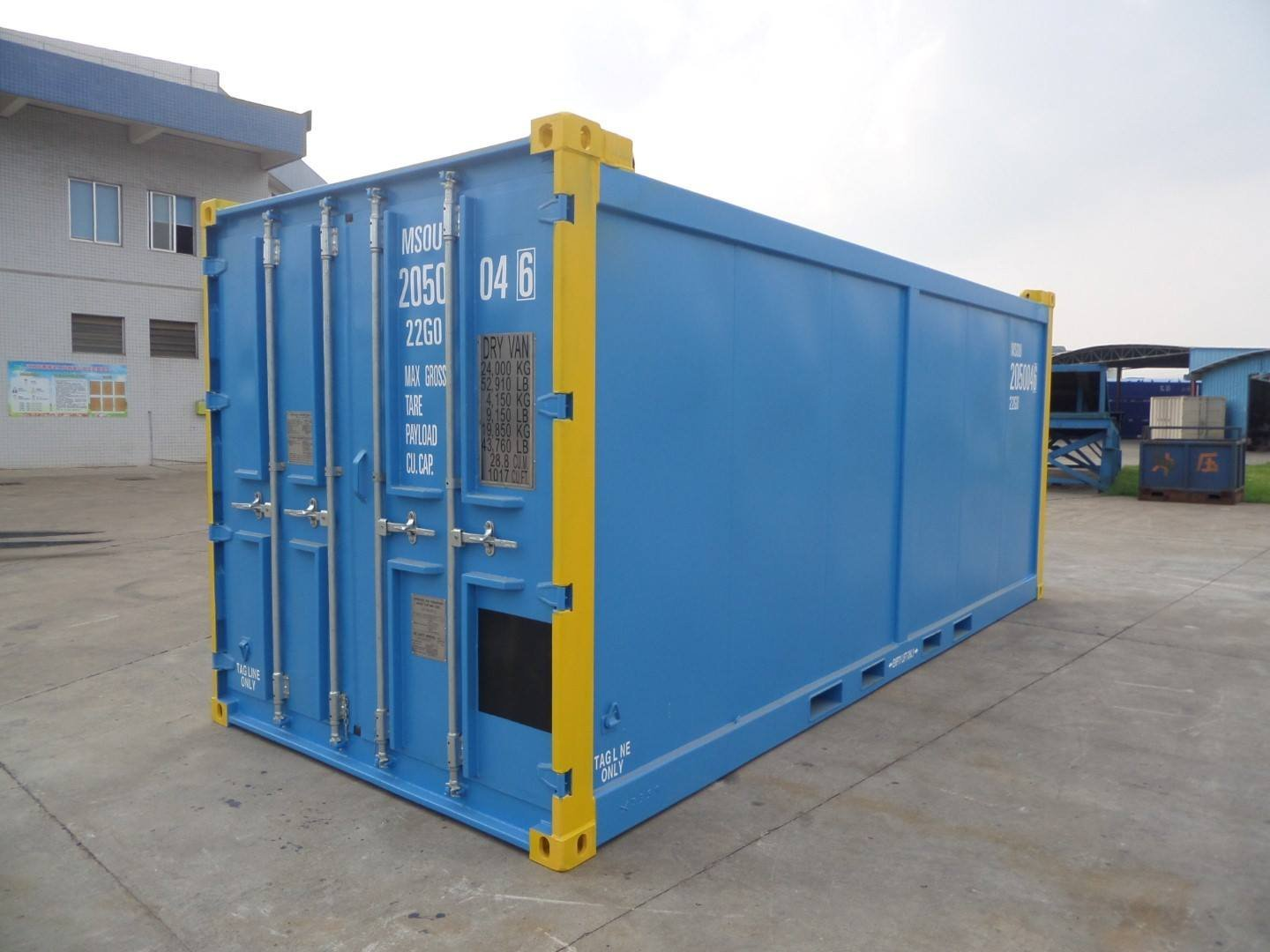

20ft DNV Offshore-Rated Container
Product Description
The 20ft DNV Offshore-Rated Container is designed for the secure transport and storage of equipment, supplies, and general cargo in demanding marine environments. Certified to DNV 2.7-1 standards, this unit is constructed for use on fixed and floating offshore installations.
Key Features
DNV 2.7-1 Certification
Designed, built, and certified to meet the rigorous requirements of DNV 2.7-1, the internationally recognized standard for offshore containers.
High-Strength Construction
Manufactured with corrosion-resistant steel to withstand harsh weather conditions, salt spray, and the dynamic forces associated with maritime transport.
Certified Lifting Gear
Supplied with DNV-certified lifting slings, allowing for safe and compliant handling during offshore lifting operations.
Stackable Design
Engineered for secure stacking, including configurations where lifting slings remain attached, helping optimize available deck and storage space.
CSC Plated
Complies with the International Convention for Safe Containers (CSC), supporting international transport and handling requirements.
Detailed Description
This 20ft Offshore-Rated Container is a portable unit specifically designed for the repeated transport of goods and equipment to, from, or between offshore installations. Its primary applications include the oil and gas industry, offshore wind farms, marine logistics, and other environments where equipment must withstand demanding operational conditions.
The container’s structural integrity is verified through a comprehensive certification process administered by DNV. This process includes evaluation of design details, assessment of the production process, and final prototype inspection.
High-strength steel is used for the main structure, with materials selected to help prevent brittle fracture and resist corrosion. Corner castings and lifting points are reinforced and arranged to withstand the mechanical stresses associated with offshore lifting operations.
The design accounts for critical transportation phases, including delivery from shore, securing on board vessels, and dynamic lifting in marine environments. Units manufactured after 2018 are designed, built, and certified to meet the requirements of DNV 2.7-1 in conjunction with ISO 10855-1.

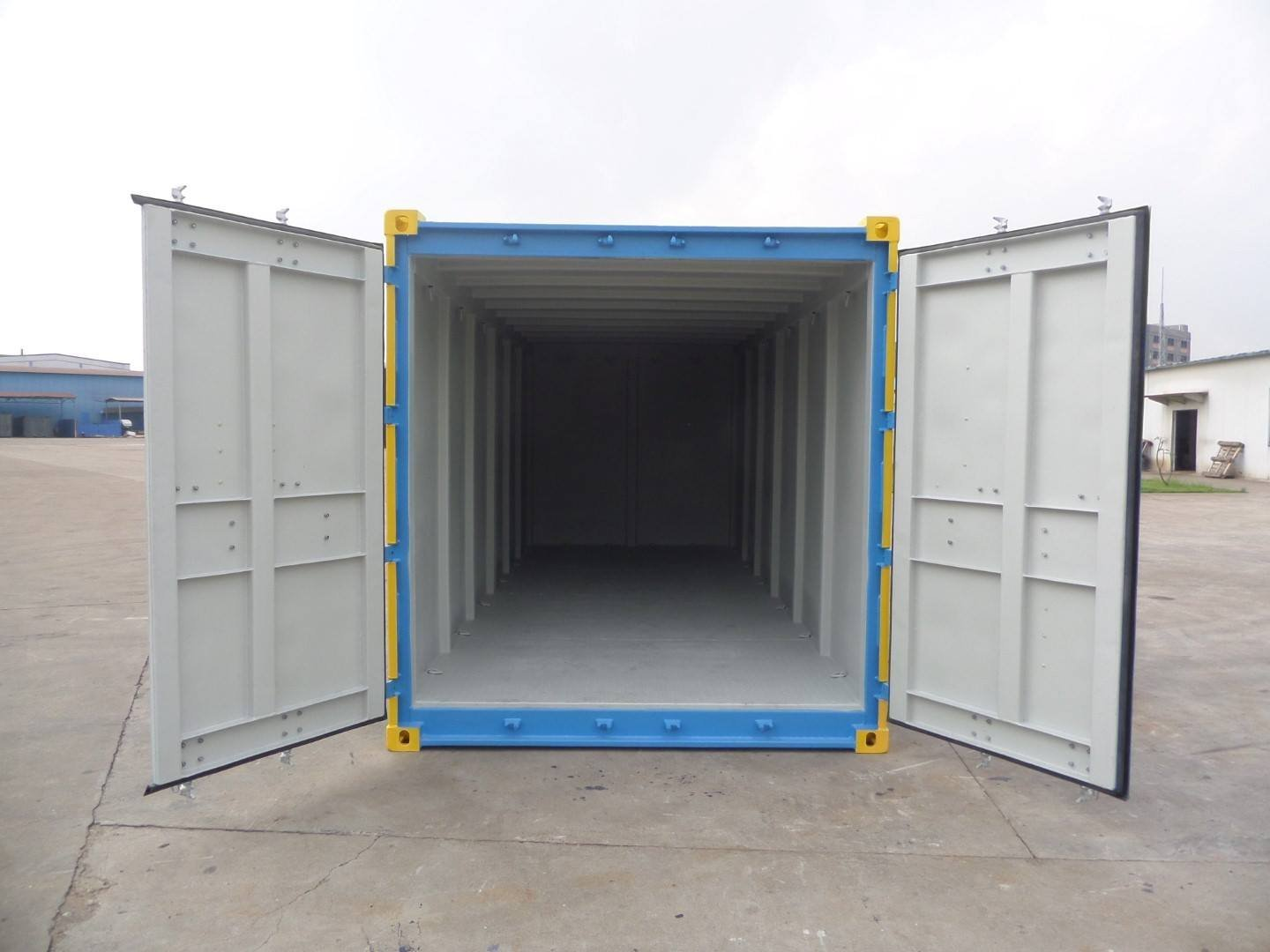

Internal lashing points are provided to help secure various types of cargo during transportation. The robust construction and certified design provide a reliable solution for demanding offshore applications.
Technical Specifications
| Specification | Imperial | Metric |
|---|---|---|
| External Nominal Dimensions (L x W x H) | 20 ft x 8 ft x 8 ft 6 in | 6.06 m x 2.43 m x 2.59 m |
| Internal Dimensions (L x W x H) | Approx. 19 ft 3 in x 7 ft 7 in x 7 ft 3 in | Approx. 5.89 m x 2.33 m x 2.21 m |
| Internal Cubic Capacity | Approx. 1,080 ft³ | Approx. 30.6 m³ |
| Maximum Gross Weight (Offshore) | 44,090 lbs | 20,000 kg |
| Tare Weight | Approx. 8,490 lbs | Approx. 3,850 kg |
| Maximum Payload (Offshore) | Approx. 35,600 lbs | Approx. 16,150 kg |
| Classification | DNV 2.7-1 / ISO 10855-1 | Post-2018 units |
Note: Specifications are based on standard 20ft DNV container configurations and may vary. Always refer to the container’s data plate for exact measurements and weights.
Intended Use
This container is intended for the storage and transport of general cargo, equipment, and supplies in offshore environments. Suitable applications include:
- Offshore supply vessels
- Oil rigs and offshore platforms
- Floating production storage and offloading (FPSO) vessels
- Offshore wind farms
- Marine logistics operations
- General offshore equipment and supply transport
The container provides a secure and weather-resistant solution for moving essential materials to and from marine installations.
Package Includes
- 1 x 20ft DNV Offshore-Rated Container
- 1 x Set of DNV-Certified Lifting Slings
